Stainless Steel 316/316L Round Bars
Stainless Steel 316/316L Round Bars are molybdenum bearing austenitic stainless steels bars. These bars have shown excellent resistance to corrosion in a wide range of media. The presence of higher nickel and molybdenum possesses stress rupture, creep and tensile strength at elevated temperatures. In addition to the bars provides superior resistance to the crevice and pitting corrosion in warm chloride atmospheres. Moreover, it also shows good resistance to stress corrosion cracking above 60 degrees C.
Table Of Content
SS 316/316L Round Bars Information
Other Equivalent Grades for SS 316/316L Round Bars
Specification of Stainless Steel 316/316L Round Bars
Stainless Steel S31600 Round Bars Types
Chemical Composition of SS 316/316L Round Bars

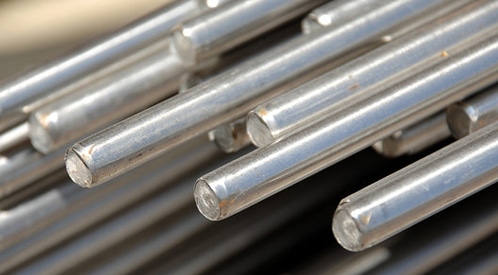

Stainless Steel 316/316L Round Bars
Stainless Steel 316/316L Round Rods
The presence of low carbon in grade 316 L immune the round bars from sensitization and are broadly utilized in heavy measure welded works. Therefore the austenitic structure of these round bars even down to cryogenic temperature and also offers great toughness. The welding of these bars is performed by both resistance and fusion process.
Fabrication details In order to meet up the requirements and desires of the patrons, the manufacturer offers the bars in diverse shapes, standards, dimensions, size, and length according to them. The firms are committed toward the quality of the product so to achieve quality worthy product they procure top-notch quality raw material. Even more, they worked with qualified professionals and dedicated personnel that enables to carter national and international standard product. On the other hand, they admire the latest and advance tools to obtain a smooth finish product.
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
---|---|---|---|---|---|---|---|
SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | - | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Testing of product To attain quality assurance product many essential testing programs are conducted on various parameters. Such tests are like IGC test, chemical analysis, mechanical test, flaring test and pitting resistance.
Importance of packaging To protect the product from any severe damage and scratches throughout transit the firm uses standard packaging material for packing. Thus the products are packed in wooden cases, carton boxes and wooden pallets.
Specifications : ASTM /ASME A276/SA 276, A479/SA 479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Range : 3.17 MM TO 350 MM DIA
Length : 1 to 6 Meters, Custom Cut Lengths
SS Round Bars : Outside Diameter in the range of 4mm to 500mm
SS Bright Bars : Outside Diameter in the range of 4mm to 100mm
SS Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
SS Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Condition : Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Form : Round, Square, Hex (A/F), Rectangle, Flat, Billet, Ingot, Forging Etc.
Stainless Steel 316 / 316L Round Bar
SS 316 Round Bar
SS 316L Round Bar
ASTM A276 SS 316/316L Round Bar
UNS S31600 Round Bar
UNS S31603 Round Bar
WERKSTOFF NR. 1.4401 / 1.4436 Round Bar
DIN 1.4404 / 1.4435 Round Bar
BS 316S31 / 316S33 Round Bar
BS 316S11 / 316S13 Round Bar
Stainless Steel 316 / 316L Bright Bar
SS 316 Bright Bar
SS 316L Bright Bar
ASTM A276 SS 316/316L Bright Bar
UNS S31600 Bright Bar
UNS S31603 Bright Bar
WERKSTOFF NR. 1.4401 / 1.4436 Bright Bar
DIN 1.4404 / 1.4435 Bright Bar
BS 316S31 / 316S33 Bright Bar
BS 316S11 / 316S13 Bright Bar
Stainless Steel 316 / 316L Hex Bar
SS 316 Hex Bar
SS 316L Hex Bar
ASTM A276 SS 316/316L Hex Bar
UNS S31600 Hex Bar
UNS S31603 Hex Bar
WERKSTOFF NR. 1.4401 / 1.4436 Hex Bar
DIN 1.4404 / 1.4435 Hex Bar
BS 316S31 / 316S33 Hex Bar
BS 316S11 / 316S13 Hex Bar
Stainless Steel 316 / 316L Square Bar
SS 316 Square Bar
SS 316L Square Bar
ASTM A276 SS 316/316L Square Bar
UNS S31600 Square Bar
UNS S31603 Square Bar
WERKSTOFF NR. 1.4401 / 1.4436 Square Bar
DIN 1.4404 / 1.4435 Square Bar
BS 316S31 / 316S33 Square Bar
BS 316S11 / 316S13 Square Bar
Stainless Steel 316 / 316L Black Bar
SS 316 Black Bar
SS 316L Black Bar
ASTM A276 SS 316/316L Black Bar
UNS S31600 Black Bar
UNS S31603 Black Bar
WERKSTOFF NR. 1.4401 / 1.4436 Black Bar
DIN 1.4404 / 1.4435 Black Bar
BS 316S31 / 316S33 Black Bar
BS 316S11 / 316S13 Black Bar
Stainless Steel 316 / 316L Flat Bar
SS 316 Flat Bar
SS 316L Flat Bar
ASTM A276 SS 316/316L Flat Bar
UNS S31600 Flat Bar
UNS S31603 Flat Bar
WERKSTOFF NR. 1.4401 / 1.4436 Flat Bar
DIN 1.4404 / 1.4435 Flat Bar
BS 316S31 / 316S33 Flat Bar
BS 316S11 / 316S13 Flat Bar
Stainless Steel 316 / 316L Polished Bar
SS 316 Polished Bar
SS 316L Polished Bar
ASTM A276 SS 316/316L Polished Bar
UNS S31600 Polished Bar
UNS S31603 Polished Bar
WERKSTOFF NR. 1.4401 / 1.4436 Polished Bar
DIN 1.4404 / 1.4435 Polished Bar
BS 316S31 / 316S33 Polished Bar
BS 316S11 / 316S13 Polished Bar
Stainless Steel 316 / 316L Rectangular Bar
SS 316 Rectangular Bar
SS 316L Rectangular Bar
ASTM A276 SS 316/316L Rectangular Bar
UNS S31600 Rectangular Bar
UNS S31603 Rectangular Bar
WERKSTOFF NR. 1.4401 / 1.4436 Rectangular Bar
DIN 1.4404 / 1.4435 Rectangular Bar
BS 316S31 / 316S33 Rectangular Bar
BS 316S11 / 316S13 Rectangular Bar
Stainless Steel 316 / 316L Threaded Bar
SS 316 Threaded Bar
SS 316L Threaded Bar
ASTM A276 SS 316/316L Threaded Bar
UNS S31600 Threaded Bar
UNS S31603 Threaded Bar
WERKSTOFF NR. 1.4401 / 1.4436 Threaded Bar
DIN 1.4404 / 1.4435 Threaded Bar
BS 316S31 / 316S33 Threaded Bar
BS 316S11 / 316S13 Threaded Bar
Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|---|
SS 316 | 0.080 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 - 18.0 | 11.0 - 14.0 | 2.0 - 3.0 |
SS 316L | 0.035 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 - 18.0 | 10.0 - 14.0 | 2.0 - 3.0 |
Grade | Density | Melting Point | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
---|---|---|---|---|---|---|
SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | 515 Min | 205 Min. | 35 % Min | 217 Max. |
SS 316L | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min. | 40% Min | 217 Max. |
Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
---|---|---|---|---|---|---|
at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
49.6 at 1652 °F | 10.4 at 32 – 1500°F |
For More Information About ASTM A276 Stainless Steel 316 / 316L Round Bar Please Call +91 22 6743 7112 or Send an Email to [email protected]
